Ham Radio Troubleshooting Guide: Diagnose Power, Receive, Repeater, SWR, Noise, and RF Problems

Start With a Baseline, Not a Replacement Radio

A useful ham radio troubleshooting guide should make the problem smaller with every test. Replacing the radio first changes several variables at once. Record the failed configuration, return everything else to a known state, and change one variable.

I use one rule throughout station diagnosis: every test must answer a specific question. A loaded voltage reading tests the power path. A known-good jumper tests the original cable. A repeater response tests access, not whether another operator chose to answer.

Research-based method: The checks below are external isolation steps. Match every rating and procedure to the exact equipment manual before touching connections or transmitting.

First five-minute triage: Stop for any heat, smoke, arcing, battery damage, or lightning concern. Otherwise, identify the single visible symptom, check the first fault domain in the table, make one reversible comparison, and record whether the symptom changed before moving deeper.

Before testing, note the radio, frequency, mode, memory or VFO state, power source, antenna, feedline, accessories, and last known working condition. This record makes each experiment reversible.

Field Note: I have watched new operators hear a repeater respond, receive no answer, and conclude that the radio failed. That response already proves several parts of the path worked. Access and conversation are separate questions.

Use the complete station basics guide for the larger system view. For a new build, follow the complete ham radio setup path and record the working configuration.

Stop Testing When the Problem Is Unsafe

Stop immediately for smoke, arcing, burning odor, melted insulation, abnormal heat, a swollen or leaking battery, damaged mains wiring, or lightning damage. Disconnect only when it is safe to do so. Do not bypass protection, keep replacing fuses, or transmit again to reproduce the fault.

This article covers external, low-voltage checks. It does not authorize opening mains-powered equipment or performing board-level diagnosis or transmitter alignment. Internal circuits can retain hazardous energy after unplugging, so suspected internal faults belong with the manufacturer or a qualified technician.

Safety limit: Never troubleshoot an antenna, feedline, mast, vehicle route, or grounding conductor near overhead power lines or during a storm. Stop when the work involves a roof, structural modification, vehicle firewall, airbag area, mains panel, lightning system, or any condition controlled by local electrical or building code. Use a qualified professional who can inspect the actual site.

Do not charge or test a swollen, damaged, hot, wet, or leaking battery. Follow its maker’s isolation and disposal instructions, and keep tools away from exposed terminals because short-circuit current can be destructive.

Symptom 1: The Radio Has No Power or Resets

A radio that will not turn on needs a no-load power check, but a radio that resets during transmit needs a loaded check. Confirm the source voltage range, polarity, maximum transmit current, connector, fuse arrangement, and grounding instructions in the exact manual. Then inspect the external power path with the source disabled: battery state, supply controls, inline fuses, fuse holders, connector seating, polarity marks, loose terminals, damaged insulation, and signs of heat.

If the radio receives normally but restarts when the transmitter is keyed, the source may show acceptable voltage while idle and sag under current. Measure at the radio’s DC input during a brief, permitted transmission into a verified antenna system or a correctly rated dummy load. A large drop between the source and the radio points toward undersized wiring, excessive length, a weak connector, a resistive fuse holder, a depleted battery, or a source that cannot provide the required current.

• Stop if a cable, connector, fuse holder, or battery becomes warm unexpectedly.
• Do not replace a specified fuse with a larger value to prevent nuisance opening.
• Do not defeat reverse-polarity protection or connect bare leads for a temporary transmit test.
• Include every powered accessory when evaluating total current demand.
• Return to the original configuration after each substitution.

A blown fuse is evidence, not a repair instruction. If the correct replacement opens again or current is abnormal, disconnect the system instead of inserting another fuse. Follow setting up radio power correctly for source capacity, voltage drop, wiring, battery state, and protection.

Symptom 2: The Radio Has No Receive Audio

When a ham radio has no receive audio, begin with controls that can mute a healthy receiver. Raise the volume, reduce the squelch, verify the selected VFO or memory, and check receive tone or digital squelch. Confirm the mode matches the signal because FM, AM, SSB, and digital modes are not interchangeable. A busy channel may still seem silent when tone, mode, squelch, or filter settings reject its audio.

Next, separate the audio path from the RF path. If the radio produces normal hiss with squelch open, the speaker and much of the audio chain are working. If a known local signal can be heard on another receiver but not this one, compare frequency, mode, antenna connection, attenuation, RF gain, filter width, tone settings, and any external speaker or accessory interface.

A dummy load can separate external signals from receiver-generated noise, but use it only within its ratings. A second antenna, known-good feedline, or documented local signal is often a safer early comparison than a factory reset.

A saved channel may contain receive tone squelch, the wrong mode, or an unexpected VFO state. The complete radio programming guide explains how to verify a memory without making random menu changes.

Symptom 3: You Hear the Repeater but Cannot Access It

When a ham radio is not transmitting through a repeater, hearing its output confirms only that the repeater reaches your receiver. It does not confirm the input frequency, access method, mode, or return path. Check the current listing and any operator-provided status notice, then compare them with the radio’s actual transmit configuration.

Verify the output frequency, shift direction, offset, transmit CTCSS tone or DCS code, and analog or digital mode. Make sure the radio is not set to transmit inhibit, receive-only memory, reverse mode, or an unintended power level. Some radios display the listening frequency until the push-to-talk control is pressed, so the programmed transmit frequency may not be obvious from the idle screen.

Key point: A receive tone controls what your speaker opens for. A transmit tone controls what the repeater receiver accepts. Setting the correct tone value in the wrong field can leave reception normal while access still fails.

If programming is correct, move to path questions. The repeater may be temporarily unavailable, outside your usable path, or difficult to reach from the present location. Test from a safe location, use the intended antenna, confirm stable power, and ask a local operator about status. Do not increase power until frequency, offset, tone, mode, antenna, and the existing power setting are verified.

The model-independent concepts are explained in setting repeater offset and tone. Use the exact radio manual for the menu sequence because one model’s tone labels and memory steps should not be generalized to another.

Symptom 4: The Repeater Responds but Nobody Answers

A repeater tail, courtesy tone, identifier, or other response after your transmission usually means the repeater detected something from your station. That is meaningful diagnostic evidence, but it does not prove your voice audio was clear, your timing was correct, or another operator was listening. Silence alone is not proof that the radio, microphone, or repeater is broken.

Listen before transmitting and note whether the system is active, linked, carrying a scheduled net, or using a procedure that affects when stations should call. Leave a clear pause after pressing push-to-talk before speaking, use normal microphone distance, identify as required, and give listeners enough context to answer. A very brief unidentified carrier may open the repeater yet provide nobody with a reason to respond.

If another operator reports weak, clipped, or distorted audio, check microphone connection, speaking distance, power stability, and attached interfaces one at a time. On a digital system, also verify the intended group or destination because RF access does not prove the logical path is correct.

Ask a nearby operator for a controlled report. Record whether the repeater opened, your audio was intelligible, and the problem also occurs on simplex. Those observations separate inactivity from weak RF, poor audio, incorrect routing, and equipment failure.

Symptom 5: SWR Is High or Unstable

High SWR troubleshooting starts by confirming that the measurement itself is valid. Verify the frequency and band, instrument connections, calibration procedure, power range, and the antenna configuration expected for that band. Use the lowest transmit power that gives a valid reading, and never transmit into an analyzer or accessory that is not designed to accept RF power.

A consistently high reading can come from the wrong antenna length or configuration, a missing vehicle mount reference, a disconnected feedline, a fault at a connector, or a nearby metal object that changes the antenna environment. A reading that changes when the cable moves, after rain, with wind, when a connector is touched, or when a vehicle door, mast section, gutter, railing, or other nearby object changes position points more strongly toward an intermittent termination, water ingress, damaged coax, poor mechanical support, or a changing installation environment.

A tuner can present an acceptable impedance to the radio while loss or mismatch remains elsewhere in the system. Do not use a low reading at the radio as proof that every connector, cable section, mount, and radiator is healthy. The safe measurement sequence is covered in checking SWR safely, while cable faults and water damage are covered in choosing coax and RF connectors.

Symptom 6: RF Enters the Station or Audio Distorts

RF feedback can sound like distorted transmit audio, buzzing, touch-sensitive controls, computer-interface failures, or equipment that behaves normally at low power and poorly at higher power. These symptoms do not automatically mean the radio is generating a bad signal internally. Common-mode current on the outside of a feedline, poor cable routing, inadequate bonding, an interface cable, or interaction with the power path can bring RF into places where it does not belong.

Document which band, frequency, power level, mode, antenna, and accessories produce the symptom. Remove one nonessential external cable at a time with equipment powered down, then restore the baseline before the next change. A problem that disappears when a computer interface, external audio cable, or charger is removed has been narrowed, but the removed device is not necessarily the root cause; its cable may simply be the path carrying RF.

Research-based check: Treat bonding, lightning protection, AC safety grounding, and RF-current control as related but different jobs. Adding a random ground wire can create a new current path or loop. Diagnose the current path before choosing a corrective component or connection.

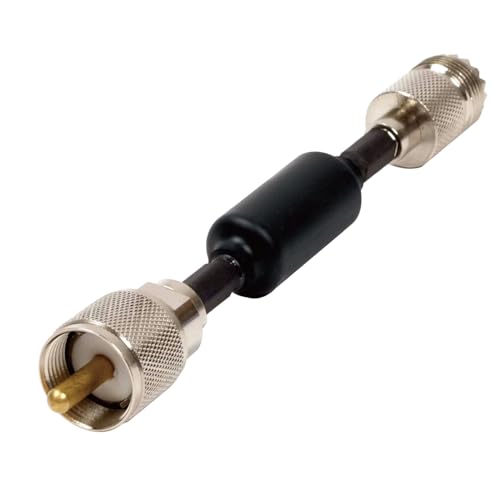

Choke placement is also a system decision. A choke at the antenna feed point addresses a different current path than one placed near the station entry or an interface cable. The grounding and lightning protection basics explain these roles and the points where local code or professional installation controls the work.

Symptom 7: Receive Noise Covers Weak Signals

Receive noise should be described before it is hunted. Record the band, frequency range, signal strength, sound, time of day, antenna direction, and whether the pattern changes as you tune. A narrow carrier, repeating comb of signals, broadband hash, and intermittent arcing sound suggest different sources, so a short recording and written time log are more useful than the statement that the band is noisy.

Begin inside the station. Disconnect nonessential chargers, computer accessories, network devices, displays, LED lighting, and switching supplies one at a time, following their normal shutdown instructions. Compare the radio on a known clean battery source when the radio manual permits it. If the noise disappears, reconnect devices individually until the pattern returns.

Checking household circuits can narrow the source, but it must be done only by someone who can operate the breaker panel safely without removing covers or touching wiring. Keep essential medical, safety, refrigeration, alarm, and network needs in mind before switching a circuit off. Never open an appliance or mains-powered device as part of this test.

If noise remains after safe isolation, use time, direction, frequency pattern, and distance clues before contacting a utility or neighbor. Never approach utility equipment or overhead lines. A receive-only comparison from a safe public location is supporting evidence, not permission to inspect electrical infrastructure.

Use Isolation Tools to Answer One Question

Diagnostic tools help only when their rating and purpose match the test. The exact manual defines normal voltage, current, connectors, menus, and protection behavior. Known-good cables isolate external paths, while meters reveal voltage sag or RF behavior within their stated limits.

Use an antenna analyzer with transmitters disconnected unless its documentation allows otherwise. A dummy load needs the correct impedance, connector, frequency, power, and duty-cycle ratings. A load safe for a brief low-power test may be unsafe for sustained transmission.

Do not buy every instrument first. The manual, visual inspection, one known-good cable, a voltage measurement, and a controlled signal report can isolate many faults. Add tools only after the question is clear.

Keep a Decision Log and Restore the Baseline

A decision log prevents troubleshooting from turning into a chain of unrecorded changes. Write the symptom in observable terms, not as a diagnosis. “Radio resets two seconds after keying on high power” is useful; “bad power supply” is only a theory until the voltage, current path, and comparison test support it.

For each test, record the configuration, the single change, the result, and whether the known configuration was restored. Include frequency, mode, transmit power, antenna, feedline, source voltage, accessories, environmental condition, and time when they matter. Photos of connector routing and screenshots of relevant menu fields can make later comparison easier, provided they do not replace the written result.

• Symptom: What exactly happened, and under what condition?
• Baseline: What complete configuration was in use?
• Question: What one fault domain will this test isolate?
• Change: What single variable was altered?
• Result: What changed, stayed the same, or became intermittent?
• Restore: Was the original configuration re-established?
• Next handoff: Which detailed guide or qualified service now owns the problem?

Intermittent faults become less random when conditions are compared. Rain, transmit power, cable movement, or time of day may reveal the next test without replacing equipment.

Know When Diagnosis Becomes Repair Work

External checks should end when the likely fault moves inside sealed equipment or requires alignment, soldering, component-level measurement, firmware recovery outside the documented user process, or exposure to hazardous voltage. Repeated fuse failure, abnormal current draw, transmitter output that remains wrong into a verified load, a physically damaged port, internal rattling, liquid entry, or lightning exposure all justify manufacturer guidance or qualified repair.

A clean decision log gives a technician useful evidence: connections, symptoms, safe comparisons, and unchanged conditions. It also helps prevent an external station fault from following the radio into the repair shop.

Stop condition: Do not remove covers to search for a burned part, adjust transmitter alignment, defeat interlocks, or probe energized internal circuits. Do not continue transmitting from equipment that smells hot, draws abnormal current, arcs, repeatedly opens protection, or was connected during a lightning event.

The goal is not to prove that every component is good. It is to isolate the fault domain far enough that the next action is appropriate: correct a setting, repair an external cable, address the power path, verify the repeater, inspect the antenna system, control RF current, locate a noise source, or hand the equipment to qualified service.

Final Thoughts: Make Every Test Reduce Uncertainty

When a station misbehaves, do not reset everything, increase power, or replace the radio. Name the symptom in observable terms, choose the first fault domain, and make one safe comparison that can change the next decision.

Stop before diagnosis becomes hazardous or turns into model-specific repair. The correct endpoint may be a setting correction, an external cable repair, a repeater-status check, a documented handoff to another system guide, or qualified service. The win is identifying that endpoint without creating a second fault.

FAQs

Use these answers to select the likely fault domain before changing equipment.

When symptoms overlap, clear any heat, power, or feedline safety risk first. Then restore the baseline and diagnose the remaining symptom separately.
